Systems Design Studio
University of Michigan | Taubman College of Architecture
Fall 2020
Collaborators: Carley Leckie & Peter Recht
This proposal considers the ways in which environmental design can respond to social inequality in the built environment. In many North American cities today, the legacy of redlining is laid bare in how different parts of cities lack appropriate water infrastructure and green space. This project is driven by thinking about the role of architecture in reducing urban heat island effect in the Island View neighborhood of Detroit. The site is adjacent to Belle Isle’s MacArthur Bridge, which is the link between the mainland and one of Detroit’s most popular recreation areas.

Strategies like massing, implementation of courtyards, attention to solar orientation and daylighting, and passive wall design are used to mitigate undue environmental burdens on the site. Form and landscape strategies were designed around the idea of increasing tree canopy in a large courtyard space. A northern and southern building pinch at the center, forming two connected but smaller, more intimate courtyards. This public space is accessible to all, with the main entrance point on the corner of E Congress Street and East Grande Boulevard.

This project’s main priorities were environmental systems and strategies to address urban heat island effect and tree cover scarcity in relation to redlining. Environmental considerations are addressed in the landscape through tree planting and the reduction of impervious surfaces. The two buildings are also designed through an environmental lens by considering solar gain and orientation, daylighting in units, CLT structure, ample insulation, and an exterior circulation system that allows plants to grow vertically.
Holc Scan | Detroit, MI
Holc Scan | Detroit, MI

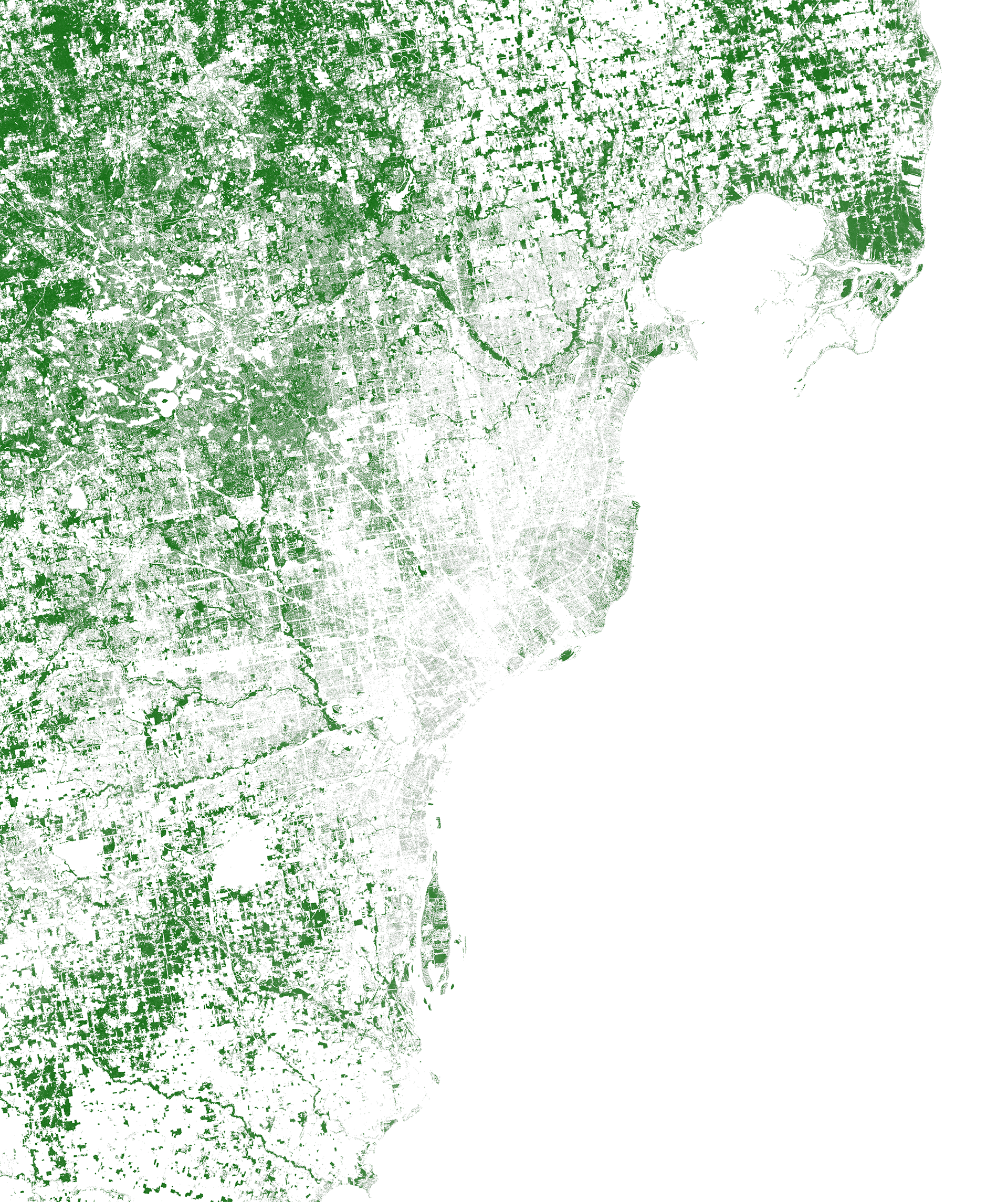

Tree Cover | Detroit, MI
Tree Cover | Detroit, MI

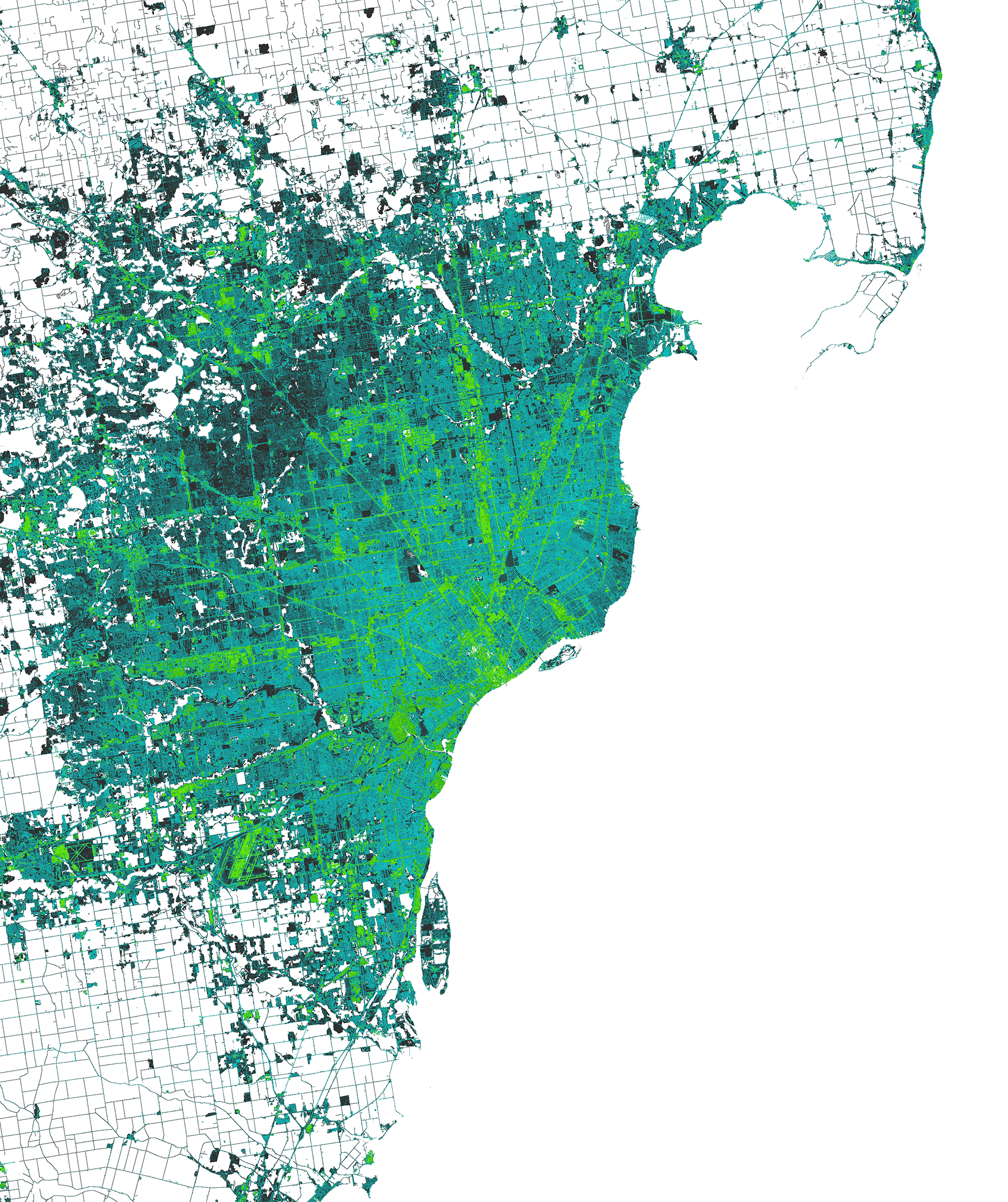

Impervious Surfaces | Detroit, MI
Impervious Surfaces | Detroit, MI
Impervious Surfaces and their Correlation to Tree Canopy in Detroit

Site Plan

Sun Study | December 21, 9am
Sun Study | December 21, 9am
Sun Study | December 21, 12pm
Sun Study | December 21, 12pm
Sun Study | December 21, 3pm
Sun Study | December 21, 3pm

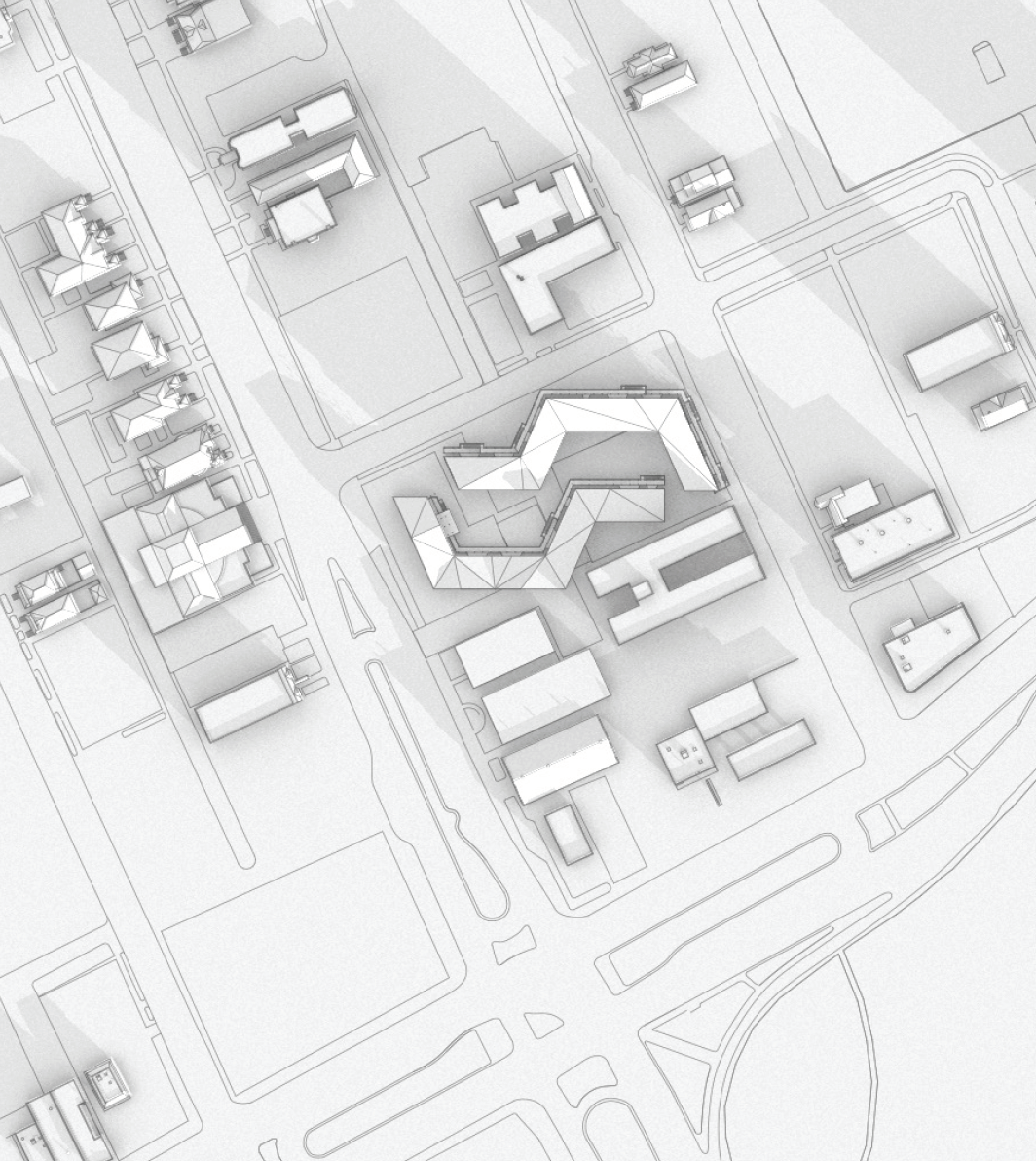

Site Sun Study

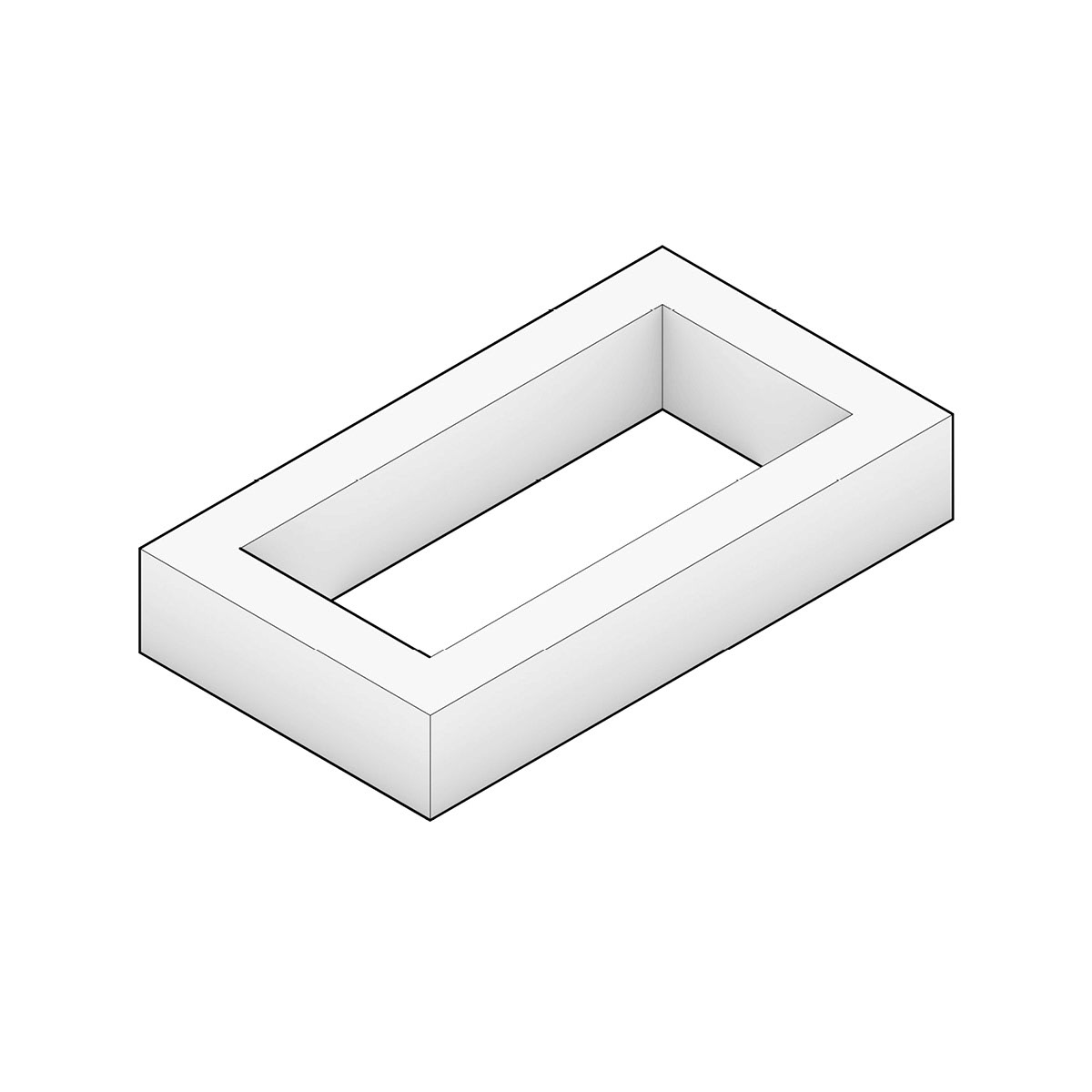

Site Area
Site Area
Courtyard
Courtyard
Pinch
Pinch
Openings
Openings
Push
Push

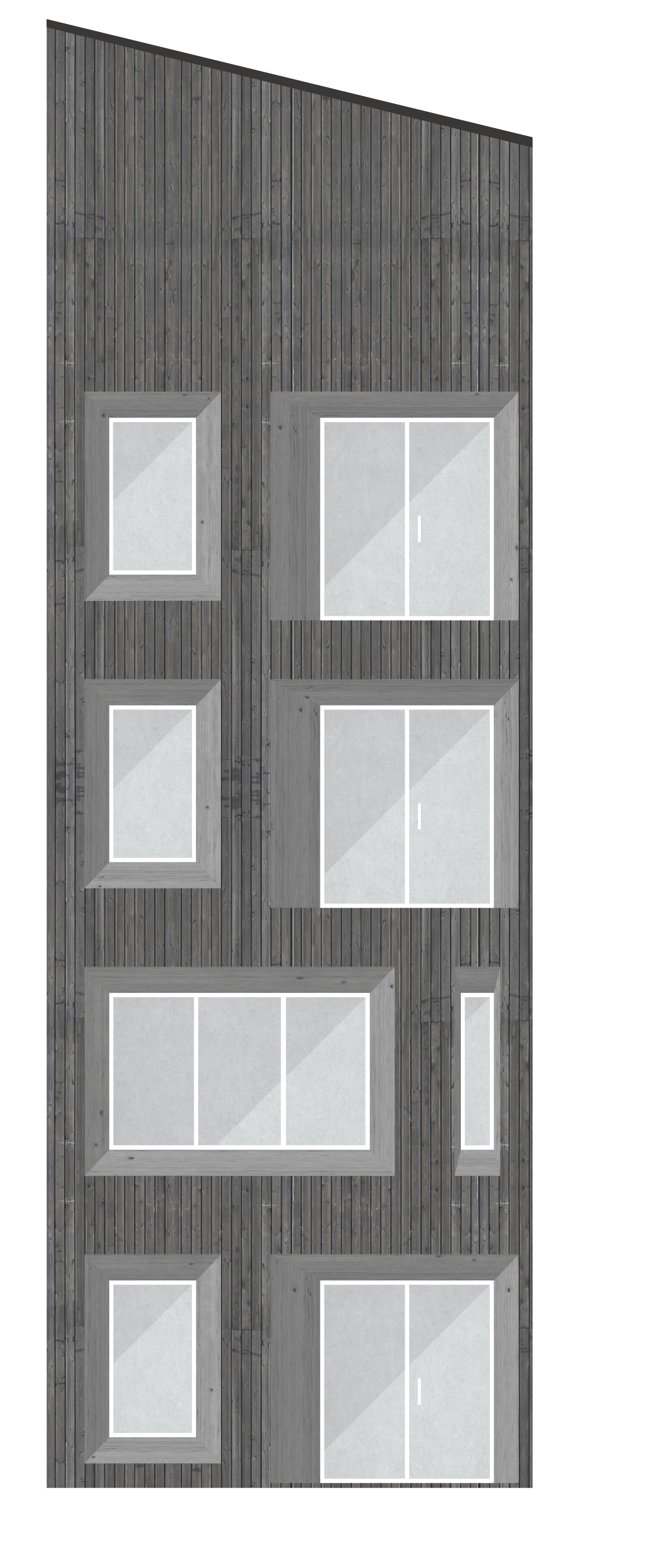

Fenestration
Fenestration
Circulation
Circulation
Canopy
Canopy
Materiality
Materiality
Concept Diagrams

Exterior Corridor Perspective

Ground Floor Plan

Second Floor Plan
Second Floor Plan
Third Floor Plan
Third Floor Plan
Fourth Floor Plan
Fourth Floor Plan

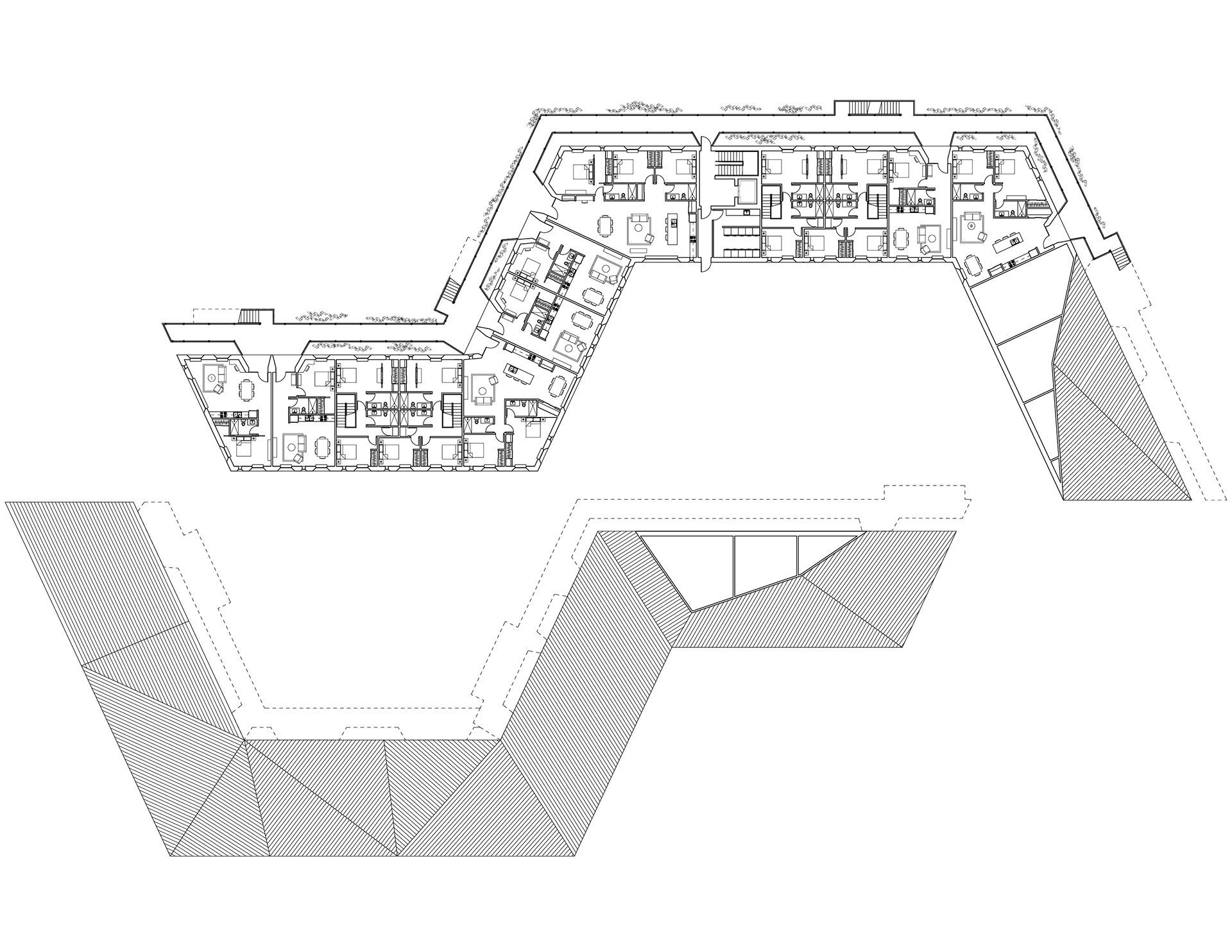

Fifth Floor Plan
Fifth Floor Plan

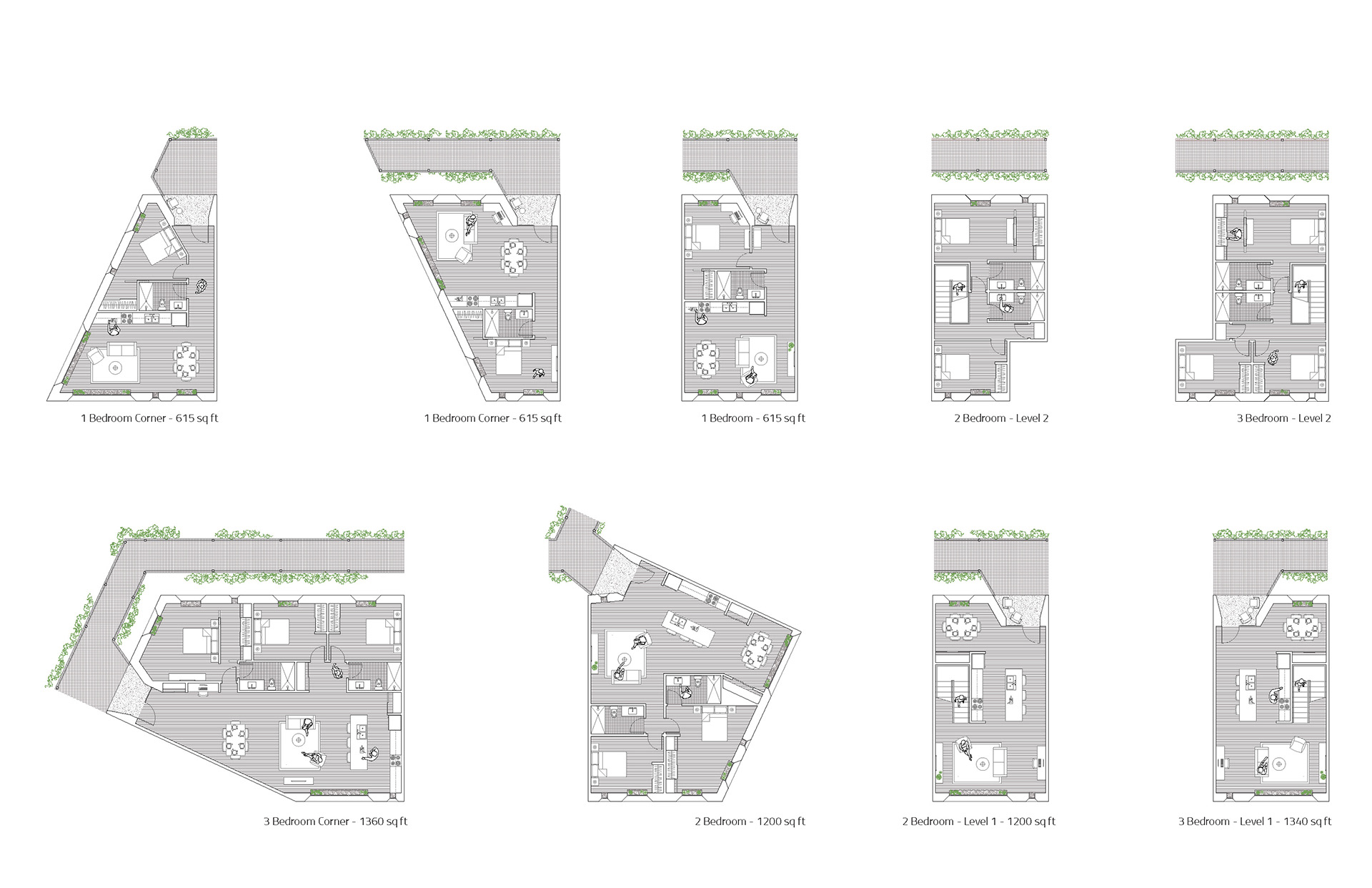

Residential Unit Plans

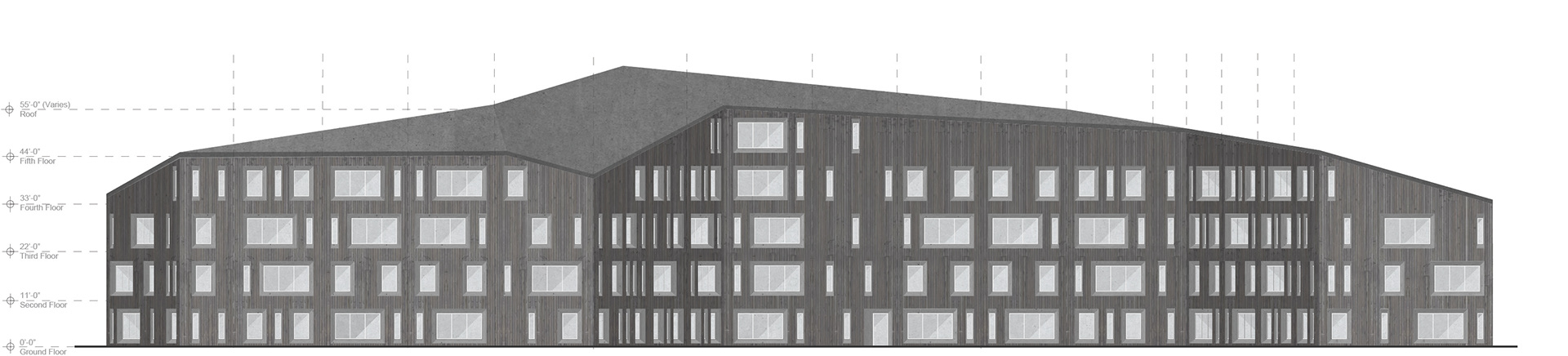

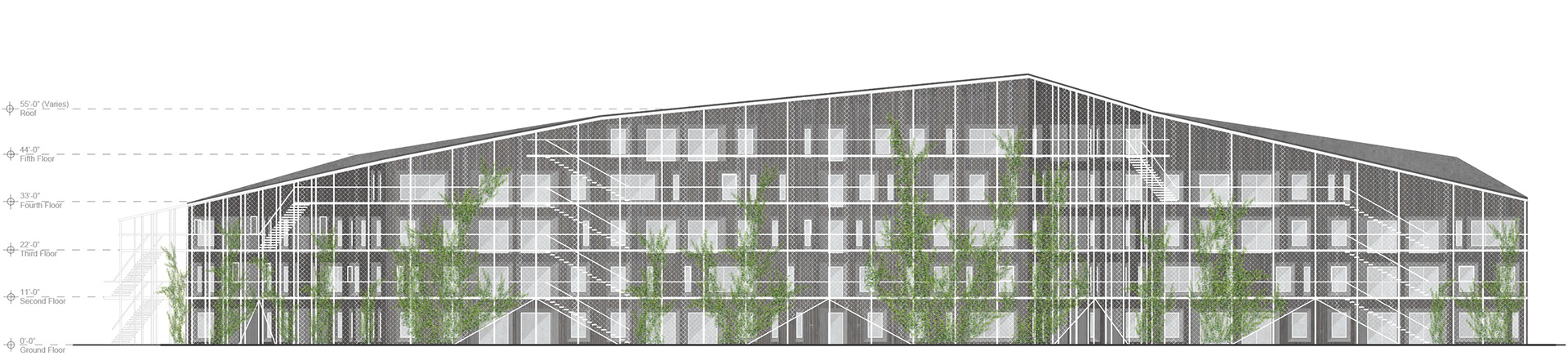

Northern Building, Northern Facade

Northern Building, Southern Facade

Southern Building, Northern Facade

Southern Building, Southern Facade

Exploded Facade Axonometric
Exploded Facade Axonometric

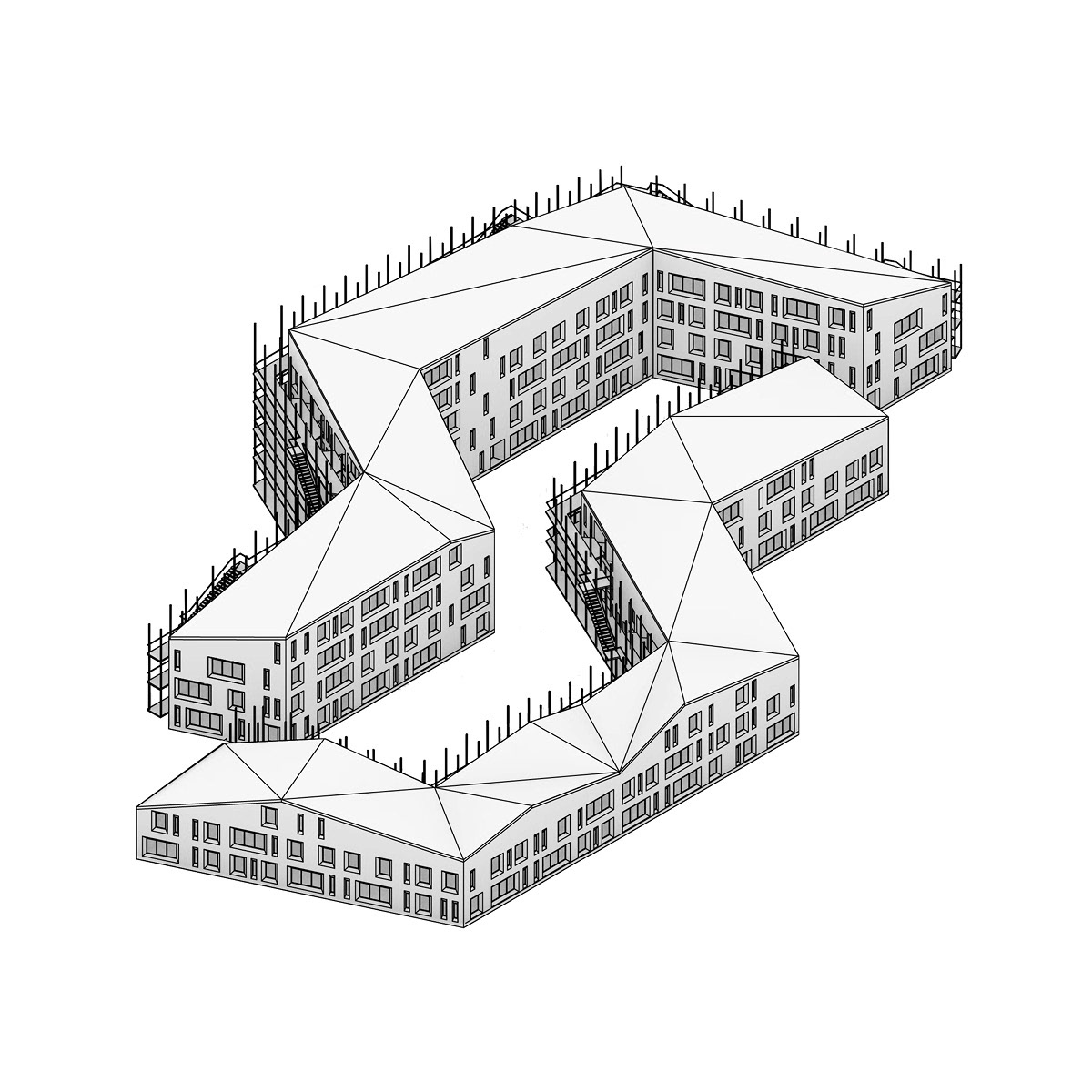

Facade Axonometric
Facade Axonometric

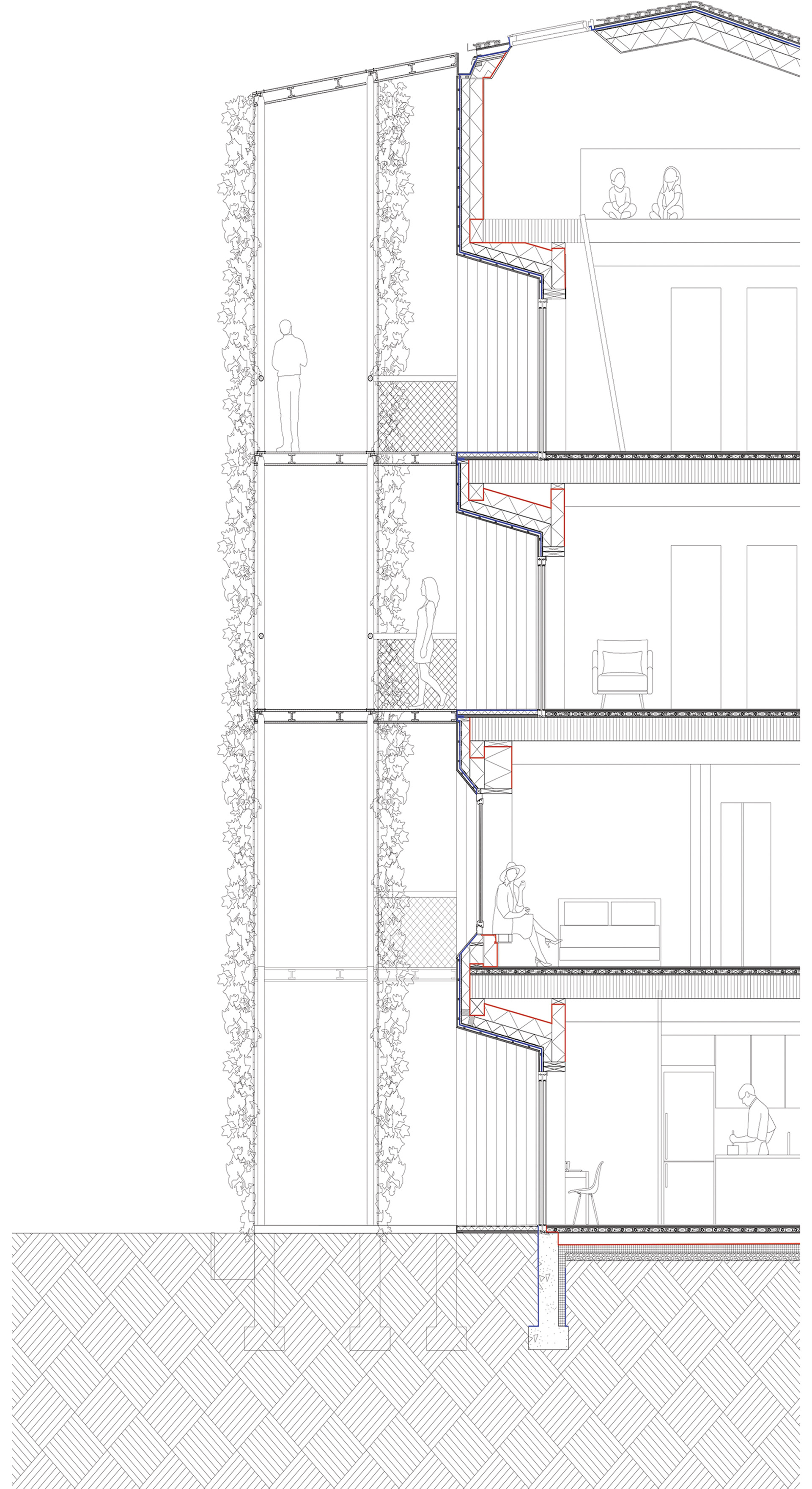

Section Perspective

Insulation Layer

Weather Wrap & Vapor Barrier

Materials                                     Depth (in)                             R Value
Drywall Gypsum                        0.5"                                        0.45
Rigid Insulation                          8"                                          3.6 (6.8/in2)
Structural CLT                             8"                                          9.6 (1.2/in2)
Water Barrier Housewrap      0.1"                                        0.1
Rigid Insulation                          5"                                          3 (6.8/in2)
Air Gap                                         1"                                           0.5
Plywood Sheathing                  0.75"                                    0.94
Charred Wood Cladding          0.8"                                       0.45
            Building Data Total
            Roof R Value                             33.24
            Wall R Value                              42.84
            Floor R Value                            12.2

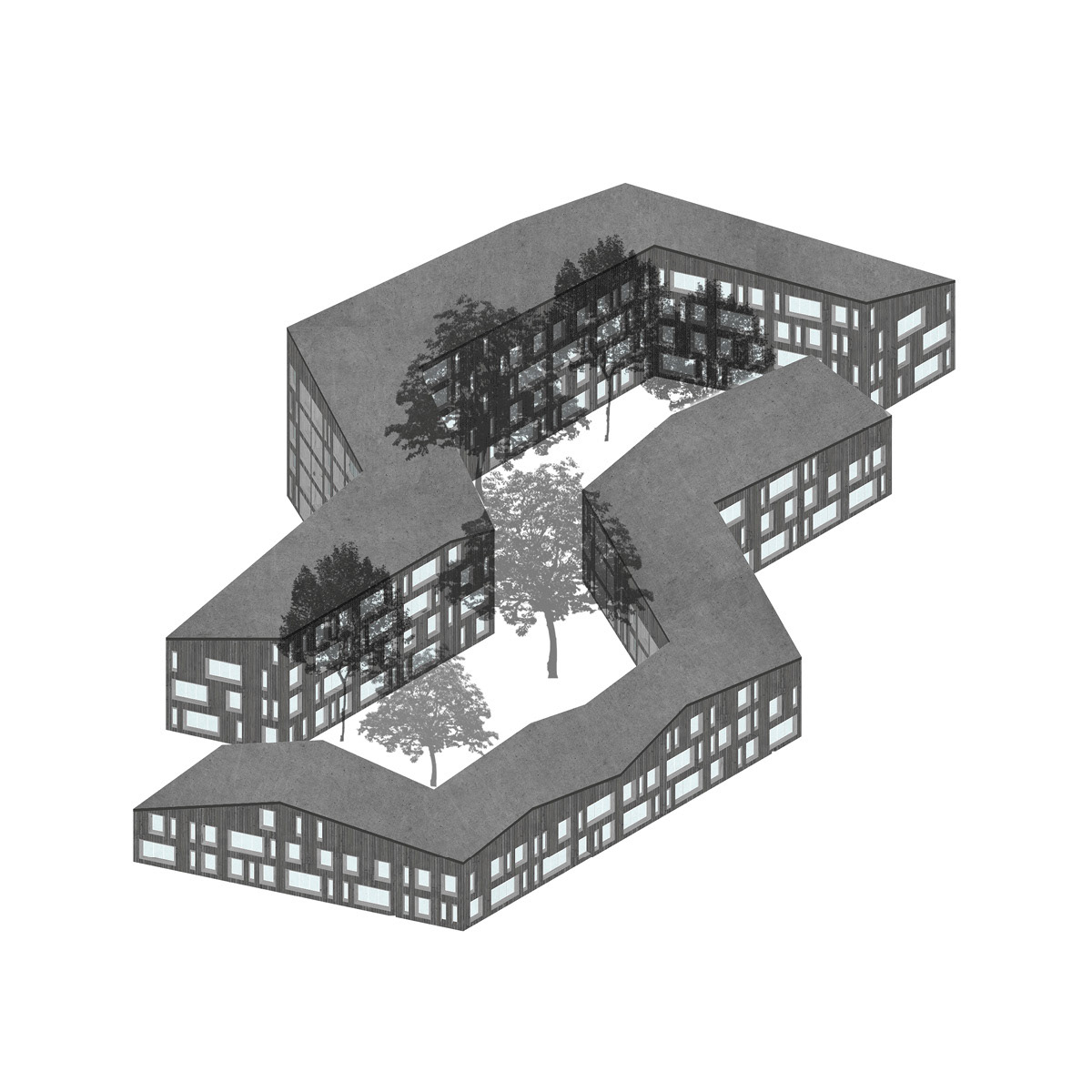

    Birdseye Perspective
